Description
HYCAT is a man-portable ASV with a broad range of data and survey functionality. Equipped with HYPACK Max, the ASV capabilities include data acquisition, survey planning, general bathymetry, cartography, water quality, discharge measurements, habitat mapping, pipeline surveys, infrastructure inspections, search and rescue and rapid disaster response. Sensors have plug-and-play capabilities, allowing HYCAT to be customized to your specific needs.
HYCAT does not require a ramp or dock launch access and can be easily deployed in remote locations by two individuals. Developed in partnership with Xylem, HYCAT autonomous surface vehicle fits in a standard sized SUV for easy transportation to and from launch sites. The robust ASV has full day survey endurance and navigates remote, shallow, inland and coastal areas easily.
Specifications
Dimensions | Length: 5.9 ft (1.8m) / Beam: 2.83 ft (.86m) / Draft: 0.5ft (.15m) |
Weight | 53 kg (115.5 lbs) |
Speed Range (survey speed) | ASV: 0 – 7.8 kts |
Endurance | 8.0 hrs @ 2 kts / 6.0 hrs @ 3 kts / 2.7 hrs @ 4 kts |
Operational Sea State | Beaufort Wind Scale Identifier 4 |
Environmental Operating Conditions | Air Temperature: -20 to + 45 C / Water Temperature: +4 C to + 32C |
Propulsion System | 2x 1KW BLDC Pocket Thrusters |
Steering | Differential Thrust |
Battery | 1 x 1500 Whr 24VDC nom UN38.3 rated Li-ion Battery. Field swappable. |
On-Board Electronics | 6th Gen Intel Core i5 GHz processor with MS Windows 10. 512 GB (Solid State Hard Drive). |
Mission Planning Tools | REALTIME mission planning, monitoring and data acquisition via ASV driver for HYPACK MAX. |
Communications | Line of Sight Wi-Fi; 5.8GHz |
Handheld Remote Controller | Ruggedized operator control unit with internal DC and external 120/240 VAC external power input. Joystick with softkeys to effortlessly switch between autonomous and RC control modes. |
Software | HYPACK MAX, SonTek Hydro Surveyor, YSI EXO KOR |

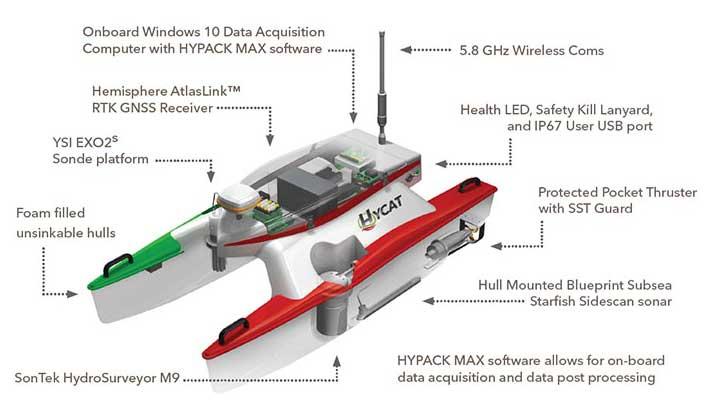

Features | Components Include |
Real-time video (standard) | Onboard Windows 10 Data Acquisition computer |
Remote control and autonomous modes | Hemisphere A222 RTK compatible GNSS receiver |
Sensors tightly integrated into hulls | YSI EXO2 S sonde platform |
Unsinkable foam filled hulls | SonTek HydroSurveyor M9 |
Protected pocket thrusters | Imagenex 3 frequency Sidescan sonar |
Red/green, port/starboard coloring for visual aide | 5.8 GHz Wireless Coms |
Onboard data storage | Health LED, Safety Kill Lanyard and IP67 User USB port |
Single data acquisition & operation software interface | HYPACK MAX software allows for on-board data acquisition and data post-processing |
Real-time survey planning/ execution | Foam filled unsinkable hull |
Exit boundary fault monitoring | |
Poor acquired data fault monitoring | |
Realtime survey duration & distance to complete feedback | |
Anti grounding | |
Autonomous vehicle health monitoring/alarms/and auto response | |
Auto navigate to recovery position | |
Onboard battery backups |
